Re: M718A1 restoration

Postby Hambone » March 23rd, 2019, 9:15 pm

Got about 70% of the CARC removed, scrapping where I can and using heat where well bonded, got everything pulled except suspension, should hit the rotisserie in a few days. Whats is my best option for paint? want to go back original 24087. Have to repair the dash panel where they repositioned the light switch when installing the ROPS.
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: M718A1 restoration

Postby rickf » March 24th, 2019, 9:55 am

For you it would be Rapco. I always use Gillespie paint. I hear the guys on Steel Soldiers always talking about getting Behr paint mixed at Home Depot but I kind of have my doubts on house paint on metal. You could go to an automotive paint place and get it matched in acrylic enamel or single stage urethane but PRICEY! The one thing you do not want to scrimp on is the primer, that is what will hold the whole job together. A good primer/surfacer/sealer.
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone
rickf
General
General

11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership

Posts: 15904
Joined: November 26th, 2007, 1:28 pm
Location: Pemberton, NJ.

Re: M718A1 restoration

Postby Hambone » March 24th, 2019, 10:30 am

I think I will go with Gillespie, will a gallon be enough for a couple coats?
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: M718A1 restoration

Postby rickf » March 24th, 2019, 10:53 am

Should be but talk to Mark at Rapco, he knows everything you will need and can probably recommend compatible primers. One thing he told me years ago was to be sure you have a powered shaker and shake the hell out of the paint before using it. The solids settle out and that is where the dulling agents are. If you do not get that stuff thoroughly mixed you will have one of those shiny Presidential mutts!
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone
rickf
General
General

11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership

Posts: 15904
Joined: November 26th, 2007, 1:28 pm
Location: Pemberton, NJ.

Re: M718A1 restoration

Postby Mark » March 24th, 2019, 6:28 pm

I second that as that's what my mutt looked like, but I did dull it some with comet cleaner/solvent/fine emery paper/heat gun.Still have to let it sit in the sun for 20 years as the kicker!!!
mark


1968 m274A5
1960 m151
1981 m151A2
1964 m416
1971 m416
Mark
Lt. Colonel
Lt. Colonel

9 years of membership9 years of membership9 years of membership9 years of membership9 years of membership9 years of membership9 years of membership9 years of membership9 years of membership

Posts: 1221
Joined: September 19th, 2009, 11:33 pm

Re: M718A1 restoration

Postby SturmTyger380 » March 25th, 2019, 7:24 am

I also read about the Steel Solders guys using Behr paint mixed at Home Depot. So I bought a few samples, I was amazed how it sprayed on smooth.

It was the Behr that I used when I created these samples for trying to match the color that was on my M151.

45' MB, ??' MBT, 47' CJ2A, 48' CJ2A,
51' M38 #1, 51' M38 #2, 51' M100,
52' M37, ??' M101A1 (1st Gulf War Vet),
53' M38A1, 53' M211, 65' M151A1, 67' M416,
MVPA #31724
User avatar
SturmTyger380
Sergeant First Class
Sergeant First Class

3 years of membership3 years of membership3 years of membership

Posts: 247
Joined: October 1st, 2015, 2:31 pm

Re: M718A1 restoration

Postby lpcoating » March 25th, 2019, 7:55 pm

Hambone wrote:Got about 70% of the CARC removed, scrapping where I can and using heat where well bonded, got everything pulled except suspension, should hit the rotisserie in a few days. Whats is my best option for paint? want to go back original 24087. Have to repair the dash panel where they repositioned the light switch when installing the ROPS.


If you want, I can send you a "spare" cut out of the area you need.

Guy
M151 Body Panels - http://www.m151bodypanels.com/

'68 A1 - Under full resto
lpcoating
Colonel
Colonel

6 years of membership6 years of membership6 years of membership6 years of membership6 years of membership6 years of membership

Posts: 1359
Joined: February 19th, 2013, 11:38 pm
Location: Mansfield, PA

Re: M718A1 restoration

Postby Hambone » March 26th, 2019, 7:11 pm

Guy,
sent you a PM.
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: M718A1 restoration

Postby njjeeper » April 2nd, 2019, 10:07 pm

So I can chime in on the Bher paint. My Ferret is painted with it. On the plus side, it’s is durable and easy to get. It’s also easy to touch up. Bad side, make sure you prime everything that chips before touch up. It’s water based paint and it will cause rust on bare steel before it dries out. Also, mine is desert tan and the color def changes over time in areas that get worn. For example, where people grab to climb in and out is a different color than untouched areas. It’s not wearing off or through but it gets smoother and in my case, more yellow. Overall, I would use it again on a motor pool driver type. For a real restoration, stick with real auto paint.
User avatar
njjeeper
1st Sergeant
1st Sergeant

11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership

Posts: 447
Joined: December 29th, 2007, 1:02 pm

Re: M718A1 restoration

Postby Hambone » April 19th, 2019, 4:13 pm

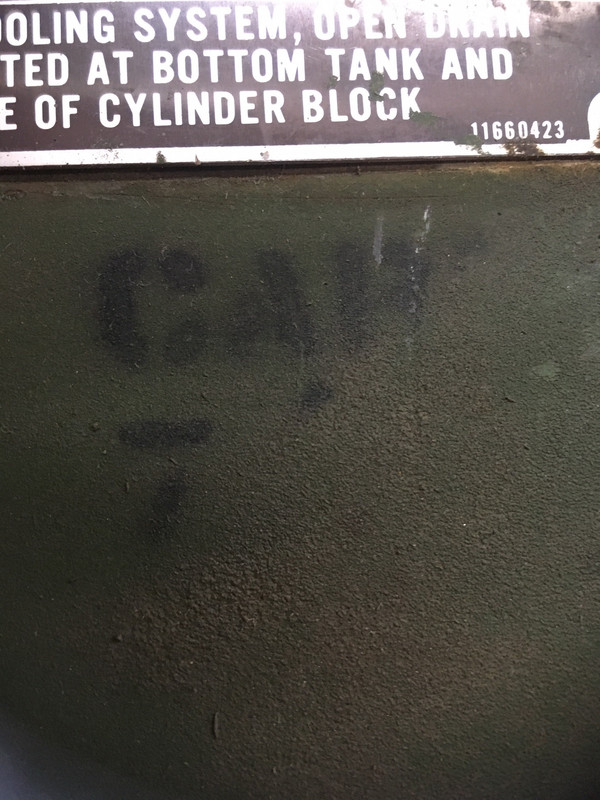

I've always read if you have a MV painted in carc it would be stenciled on the body with a date, think I found it, hope I haven't taken in too much through the intake. :lol:
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: M718A1 restoration

Postby rickf » April 19th, 2019, 8:56 pm

Yep, you found it.
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone
rickf
General
General

11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership11 years of membership

Posts: 15904
Joined: November 26th, 2007, 1:28 pm
Location: Pemberton, NJ.

Re: M718A1 restoration

Postby Hambone » April 20th, 2019, 5:34 pm

After a little sanding.
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: M718A1 restoration

Postby Hambone » April 26th, 2019, 5:05 pm

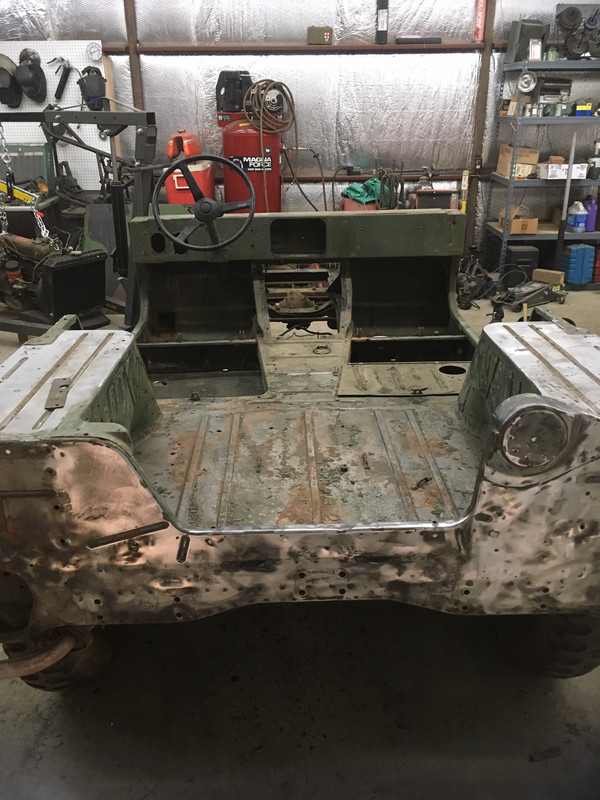

Making a little progress, not going as fast as I hoped, a lot of work taking it to bare metal, putting a coat of self etching primer on as I go to keep it from flash rusting. The underside won't be as bad, no carc under there.
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: M718A1 restoration

Postby Hambone » May 12th, 2019, 5:35 pm

After 60 days the carc has finally disappeared but the callouses on my hands haven't. :lol: Time to flip it over and tackle the bottom, going to powerwash it and hit it with a wire wheel, at least you will have to get on your back to see any flaws under there.
Hambone
Colonel
Colonel

8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership8 years of membership

Posts: 1574
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas
